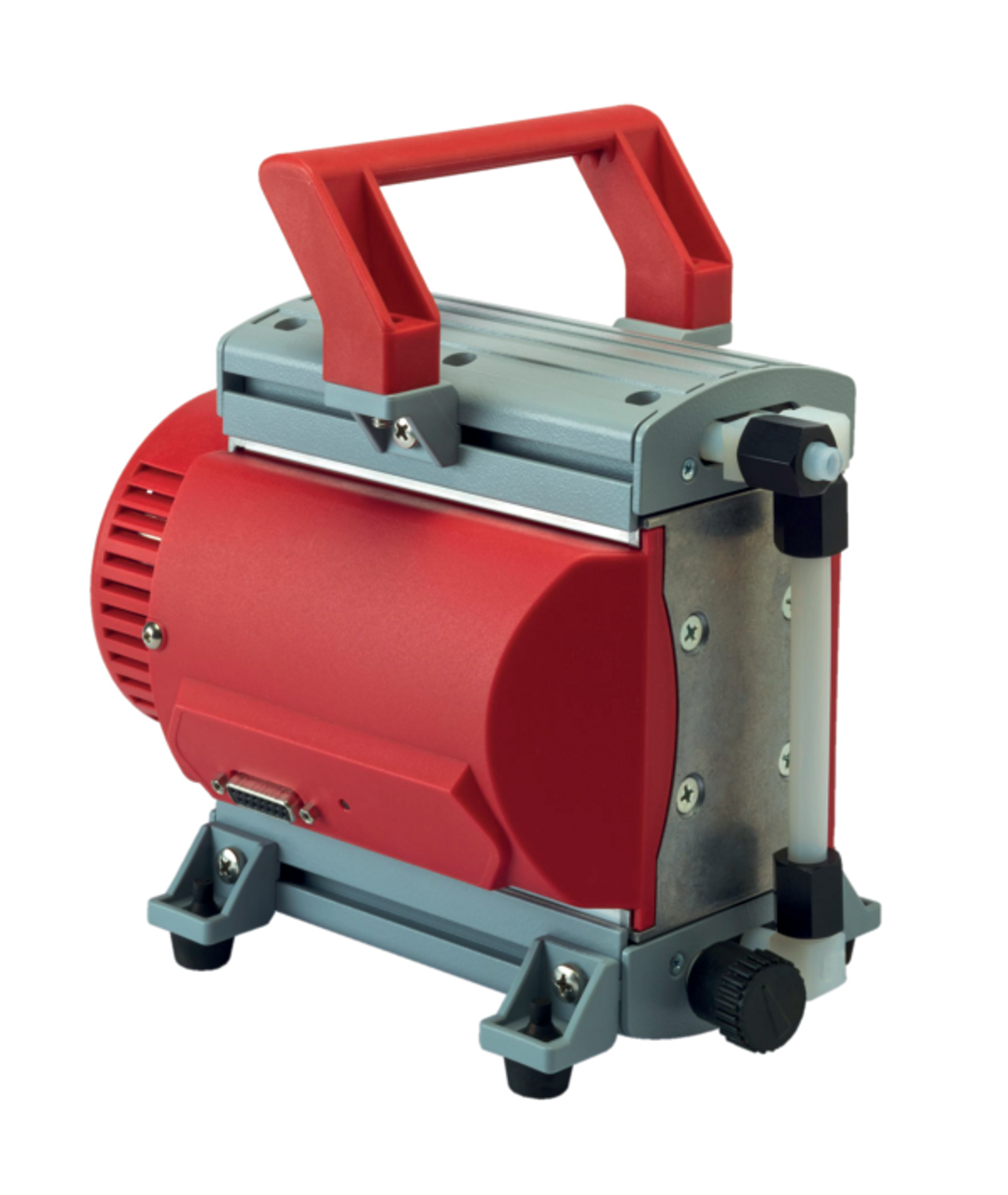

Product Description
Features
- Diaphragm pump with a pumping speed of up to 1.8 m3/h
- Used on TITAN VERSA TD version
- No hydrocarbons, Completely dry &, oil-free diaphragm pump
- Low noise level, minimal vibrations and compact design, ideal also for use in laboratories
- Low operating costs thanks to the highest quality, short maintenance times and long maintenance intervals
- Industry 4.0 compatible, Operation with other intelligent products, such as turbopumps via RS-485
Specifications
-
Ambient temperature: 10 – 40 °C | 50 - 104 °F | 283.15 - 313.15 K
-
Certification: cTUVus certified according to UL / CSA 61010-1
-
Connection flange (in): G 1/8''
-
Connection flange (out): G 1/8'' with silencer
-
Cooling method: Natural convection
-
Current, max.: 7 a
-
Dimensions (L x W x H): 223 x 145 x 217 mm
-
Exhaust pressure, max.: 1100 hPa | 825 Torr | 1,100 mbar
-
Final pressure: 2 hPa | 1.5 Torr | 2 mbar
-
Final pressure with gas ballast: 3 hPa | 2.25 Torr | 3 mbar
-
Gas ballast: Available as an accessory
-
I/O interfaces: RS-485
-
Input voltage(s): 24 V DC (±10 %)
-
Intake pressure max.: 1100 hPa | 825 Torr | 1,100 mbar
-
Integral leak rate: 1 · 10-2 Pa m³/s | < 1.33 Torr l/s | < 1 mbar l/s
-
Mains cable: No
-
Motor type: DC motor
-
Nominal rotation speed: 1800 rpm | 1,800 min-1
-
Number of pumping stages: Three stage
-
Operating altitude, max.: 2000 m
-
Protection degree: IP20 Type 1
-
Pumping speed: 1.8 m³/h | 1.06 cfm | 30 l/min
-
Rated current consumption: 1.5 a
-
Rotation speed: 600 – 2 400 rpm | 600 - 2,400 min-1
-
Sound pressure level: 45 dB(A)
-
Switch: No
-
Temperature
-
Shipping: -10 – 60 °C | 14 - 140 °F | 263.15 - 333.15 K
-
Storage: -10 – 60 °C | 14 - 140 °F | 263.15 - 333.15 K
-
-
Weight: 4.3 kg | 9.48 lb
